Mobile Folding House
Mobile Folding House
Standard size 8500*3300*3200 and 11500*3300*3200.
Integrated design, main steel structure, aluminium exterior finish, hollow LOW-E glass, good heat insulation and warmth, panoramic balcony, interior environmentally friendly decoration, supporting hardware and sanitary ware, the whole house is equipped with air conditioning bath heater plug-in card to get electricity, and can also be equipped with only home voice system.

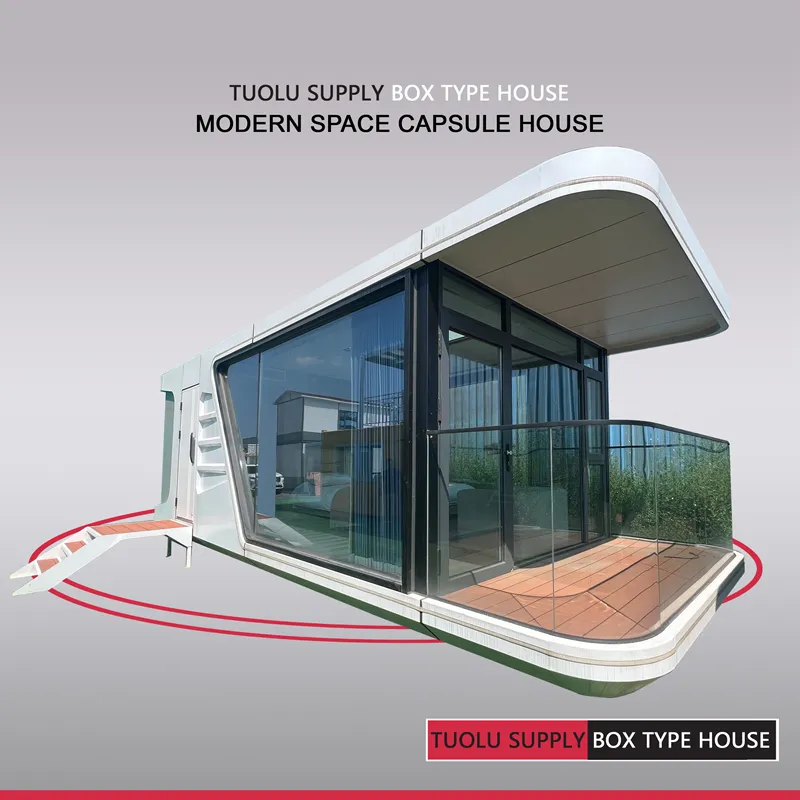

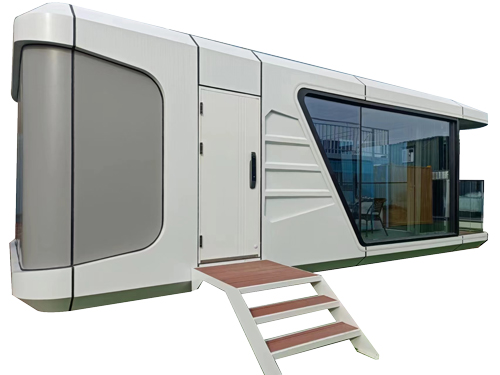

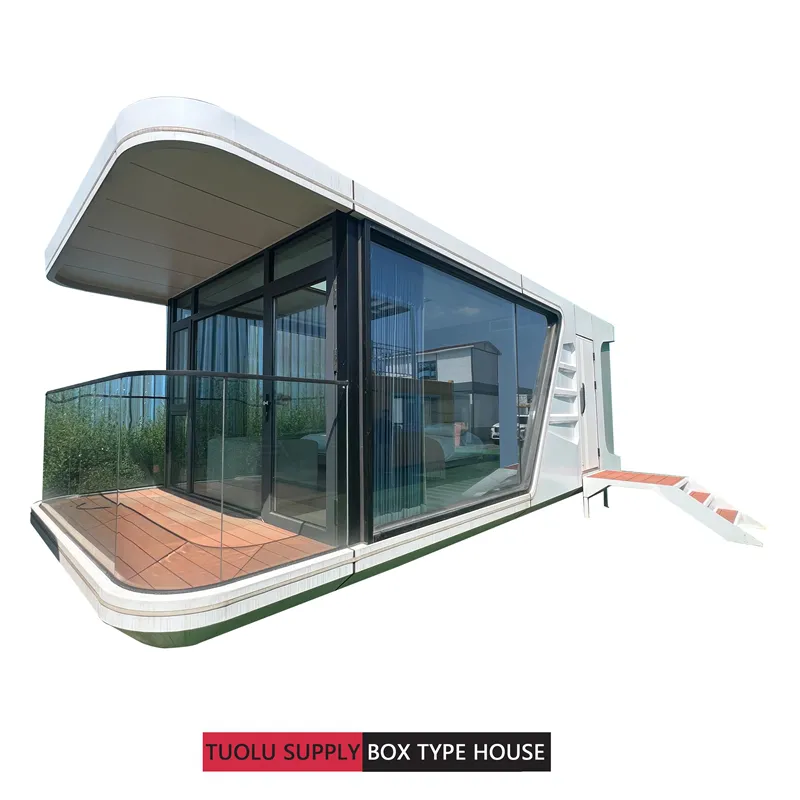

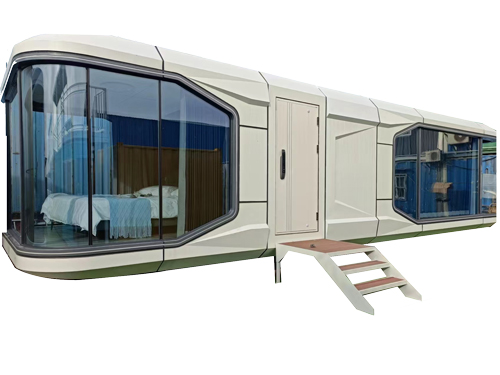

The Space Capsule Living Quarters is a futuristic, eco-friendly residence inspired by the compactness and efficiency of astronauts' living quarters. Built with advanced lightweight materials, it features a stylish modular design that maximizes interior space with innovative, multifunctional furniture and built-in storage. Smart technology allows for seamless control of the home environment, enhancing a minimalist lifestyle. Solar panels and energy-saving systems highlight its sustainability. Designed for easy transportation and assembly, these capsule homes offer flexible living solutions for modern, conscious people who value mobility and style, and pursue a smaller ecological footprint and a novel life experience.
Design and Size
Tuolu offers two standard sizes, 8500×3300×3200mm and 11500×3300×3200mm, to meet the needs of different scenarios. Whether it is for temporary accommodation or long-term use, both sizes ensure sufficient internal space to create a comfortable living environment.
Structure and Materials

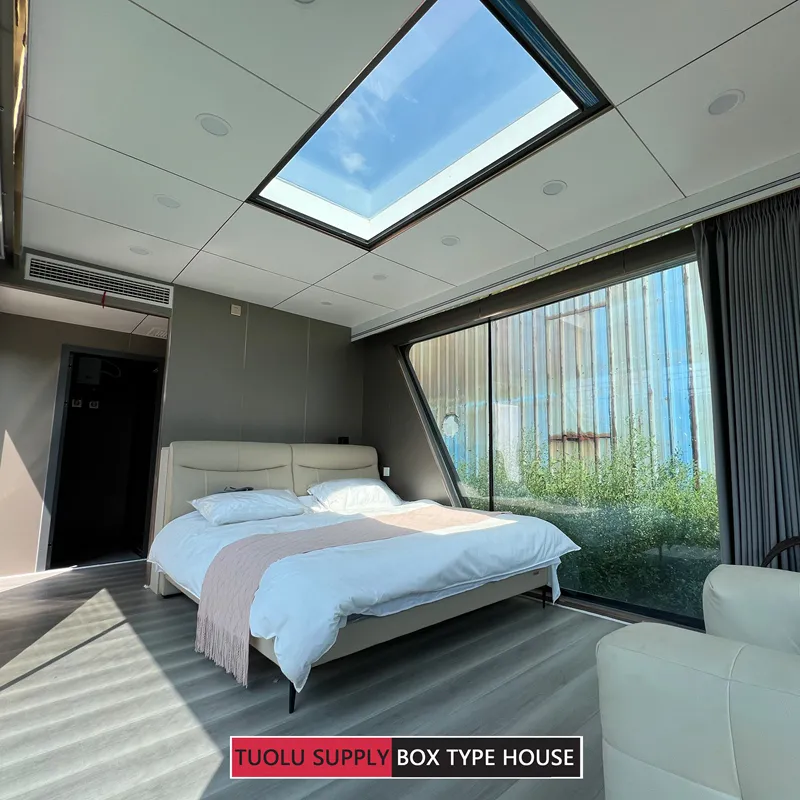

Space Capsule adopts a main steel structure design to ensure the stability and safety of the entire structure. At the same time, the aluminum exterior finish is not only beautiful and elegant, but also has strong corrosion resistance. The application of hollow LOW-E glass greatly improves the thermal insulation performance, and also provides users with a panoramic balcony to enjoy the natural beauty while maintaining the stability of the indoor temperature. The choice of environmentally friendly decoration materials reflects respect for the environment and care for human health.
Supporting Facilities
The whole house is equipped with air conditioning and bathroom heater card power supply system to ensure that users can enjoy a comfortable living experience in any weather conditions. In addition, a full range of hardware and bathroom accessories are provided to facilitate daily life. In order to enhance the convenience of users, you can also choose the Weijia voice system to realize intelligent control of home appliances and make life more convenient.
Versatility and application scenarios
Tuolu is designed with a variety of application scenarios in mind, including but not limited to travel homestays, outdoor homes, camping hotels, etc. Its heat insulation, wind resistance, sound insulation, fire resistance, earthquake resistance and other functions make it an ideal choice for dealing with various harsh environments. Whether in remote mountainous areas, seaside resorts or on the edge of the city, Tuolu can provide users with a safe, comfortable and stylish living or working space.
Withstands 9-level wind
When the external doors and windows are normally closed, they will not be damaged under wind pressure, and the high-strength columns, beams, walls and other load-bearing structures further resist the effects of wind pressure and vibration.
Anti-corrosion and insect-proof
The external aluminum alloy material has good corrosion resistance, and the material has been specially treated to have good airtightness, mosquito and termite resistance, and the service life can reach 50 years.
Fireproof and waterproof
The wall adopts waterproof membrane and waterproof material, and the waterproof performance can reach 6-level strong wind and rainstorm; the wall adopts high flame retardant board to increase fireproof and waterproof capabilities.
Thermal insulation effect up to level 8
270° surround LOW-E hollow glass curtain wall, taking into account both thermal insulation (heat transfer coefficient ≤1.5W/㎡·K) and UV blocking, using a combination of multiple materials to form a thermal insulation structure system, solving the dual problems of thermal insulation and heat insulation.
Anti-theft and anti-freeze
Air tightness up to level 8, steel structure frame, high-strength aluminum alloy hull, enhanced door lock security, ensuring privacy while enjoying the natural beauty outside.
Sound insulation performance up to 45 decibels
Double-layer glass and sound insulation materials are used, in line with the national standard "Green Building Evaluation Standard" GB50378, aiming to provide residents with a quiet indoor living environment.
Please feel free to contact us, we will provide you with a complete solution!
Strong design, self-contained ability to attract traffic, unique shape, attract traffic.
Ready to use, hourly construction time, modular prefabrication, integrated production.
Cost saving, short return cycle, 50-70% lower cost than traditional construction programme.
Light luxury soft furnishings, enhance the living experience, style decoration, intelligent control system.

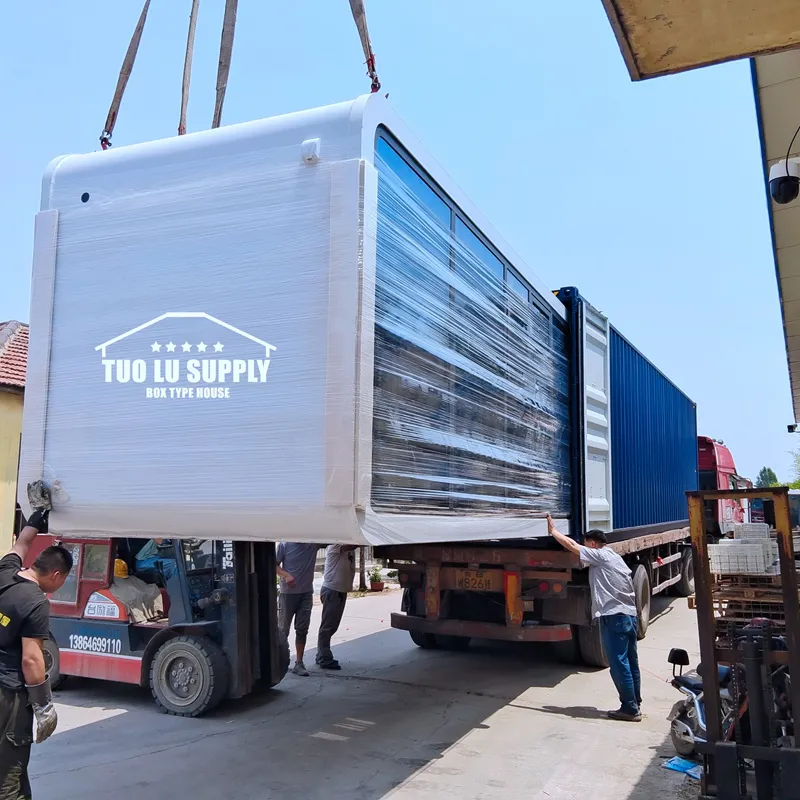

Flexible movement, reduce the risk of change, can be adjusted at any time according to the project planning layout.
Low carbon and environmental protection, friendly to the environment, no need for extensive hardening, no construction waste. | Space Capsule | ||
| Product Model | E5 |  |
| Dimension | Length 8500mm, width 3300mm, height 3200mm | |
| Floor space | 28.05㎡ | |
| Number of occupants | 2 people | |
| Power consumption | 12KW | |
| Approximate total weight | 6.5 tonnes | |
| Main peripheral structure | ||
| 1 | Steel Frame | 100*100*5mm galvanised square steel/50*100*1.8mm square tube |
| 2 | Exterior panels | 2.5mm aluminium veneer |
| 3 | Shell surface treatment | Metal fluorocarbon paint baking paint |
| 4 | Thermal insulation | 75mm rock wool block/75mm extrusion board |
| 5 | Exterior Glass | 6+12A+6 hollow LOW-E glass or 6+6 laminated thermal break glass |
| 6 | Balcony | Panoramic balcony (10mm toughened glass) |
| 7 | Balcony Doors and Windows | 60 series aluminium tempered glass with broken bridge |
| 8 | Balcony Floor | 25mm plastic wood flooring |
| 9 | Exterior Light Strip | Surround ambient light strip |
| 10 | Entrance Door | Aluminium security door + external waterproof intelligent door locks |
| Eco-friendly cabin finishes | ||
| 1 | Exquisite Ceiling | Finishable One Piece Board/Eco-friendly Bamboo Charcoal Fibre Board |
| 2 | Exquisite Walls | Finishable One Piece Board/Eco-friendly Bamboo Charcoal Fibre Board |
| 3 | Flooring | High-grade woodgrain locking flooring |
| 4 | Bathroom Walls | Waterproof Bamboo Charcoal Fibre Board |
| 5 | Indoor Lighting | 3000K Warm Yellow |
| 6 | Outdoor Lighting | 4000K warm white light |
| 7 | Skylight | 6+6 toughened laminated glass (optional +2000RMB) |
| 8 | Curtains + Tracks | Electric curtains and rails (optional +3500RMB) |

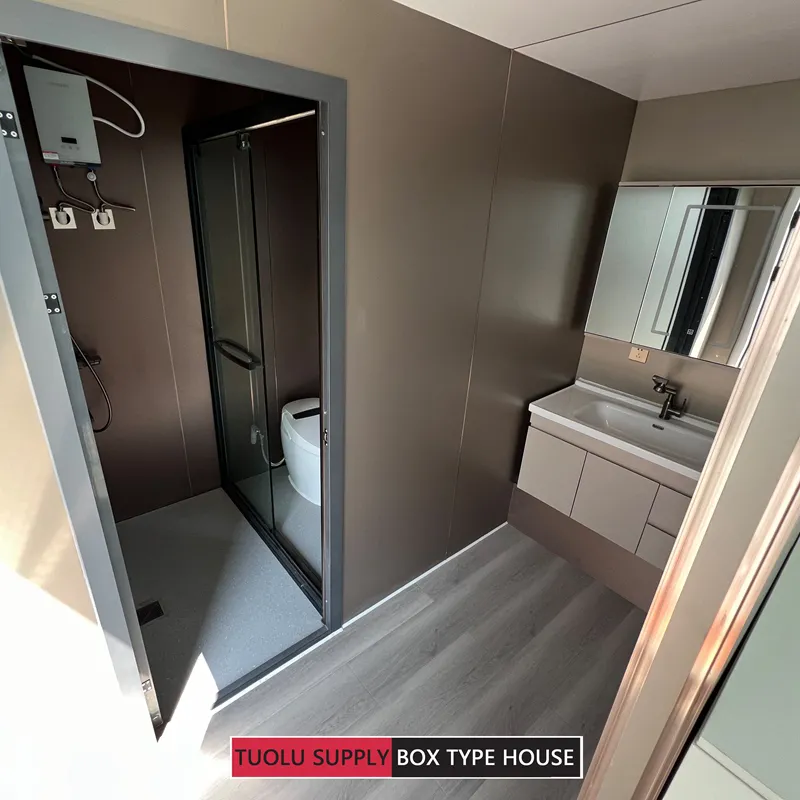

| Bathroom hardware | ||
| 1 | Bathroom Privacy Door | Aluminium alloy frosted tempered glass |
| 2 | Toilet | Intelligent Toilet |
| 3 | Shower | 50L Bucket Water Heater |
| 4 | Basin | Countertop Basin |
| 5 | Towel Racks | Towel Rack |
| 6 | Faucet | Tall Faucet |
| Whole house equipment | ||
| 1 | air conditioner | Duct Type Air Conditioner 2P |
| 2 | Bath Heater | Air-heating 3-in-1 integrated bath heater |
| 3 | Power supply system | Mains 10², air-conditioner 4², socket 2.5², lamp 2.5². |
| 4 | Plumbing System | PVC flame-retardant pipes for whole house wiring |
| 5 | Water Supply and Drainage System | PPR hot melt water supply pipe, explosion-proof PVC downpipe |
| 6 | Bin Lighting Strip | LED ambient light strip |

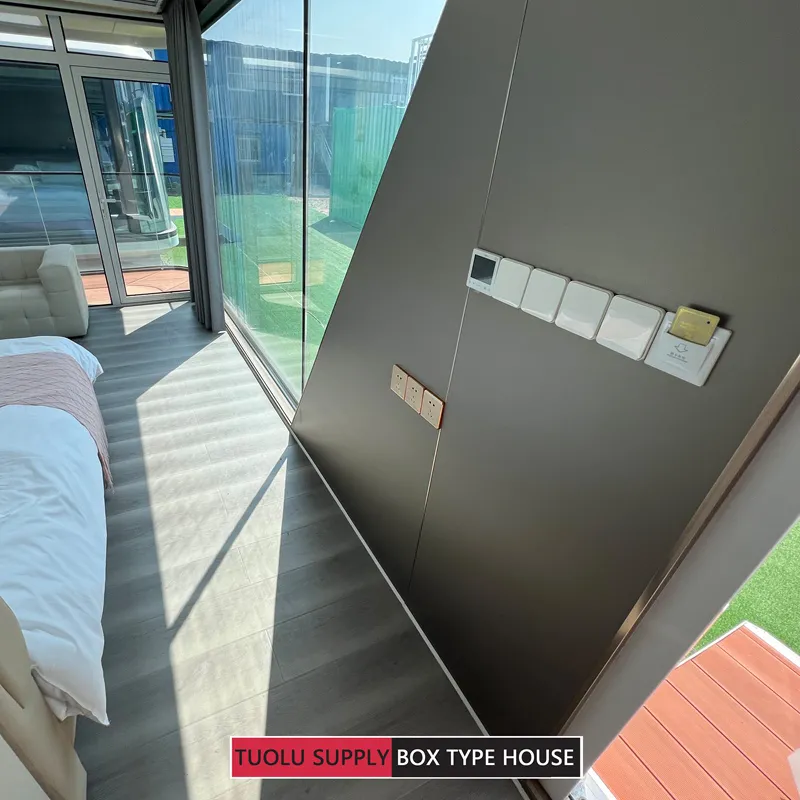

| 7 | Electricity Extraction | Plug-in card + manual control switch |
| Smart Home Voice System Options | ||
| 1 | Voice system (optional +3000RMB) | Intelligent home voice system/wireless network/manual control (can control indoor/outdoor light strips, indoor lights, curtains, air-conditioning) |
| Product Accessories | ||
| 1 | Underfloor Heating | Electric underfloor heating (optional +RMB 4500) |
| 2 | Audio-visual equipment | Projector embedded electric screen (optional +RMB 6500) |
| 3 | Stairs | Entry ladder |
| 4 | Fire Fighting Facilities | Fire sprinkler (optional +10000RMB) |
| Space Capsule | ||
| Product Model | E7 |  |
| Dimension | Length 11500mm, width 3300mm, height 3200mm | |
| Floor space | 37.95㎡ | |
| Number of occupants | 2 people | |
| Power consumption | 12KW | |
| Approximate total weight | 8 tonnes | |
| Main peripheral structure | ||
| 1 | Steel Frame | Steel frame |
| 2 | Exterior panels | Aluminium |
| 3 | Thermal insulation | 75mm rock wool insulation |
| 4 | Exterior Glass | 6+18A+6 insulating LOW-E glass or 6+6 laminated thermal break glass |
| 5 | Shell surface treatment (metal fluorocarbon paint baking paint) | Shell surface treatment (metal fluorocarbon paint baking) |
| 6 | Balcony | Panoramic balcony (10mm toughened glass) |
| 7 | Exterior Light Strip | Exterior light strip (surround ambient light strip) |
| 8 | Entrance door | Intelligent access control system |
| Eco-friendly cabin finishes | ||
| 9 | Ceiling | Finishable One-Piece Boards |
| 10 | Wall | Finishable One-Piece Boards |
| 11 | Floor | High-grade wood grain locking flooring |
| 12 | Indoor Lighting | 3000K Warm Yellow |
| 13 | Outdoor Lighting | 4000K warm white light |
| 14 | Skylight | (Optional +2000RMB) |
| 15 | Curtains + Tracks | Electric curtains and tracks (optional +3500RMB) |
| Bathroom hardware | ||
| 17 | Bathroom privacy door (frosted toughened glass) | Bathroom privacy door (frosted toughened glass) |
| 18 | Toilet | Intelligent toilet |
| 19 | Shower | 50L Bucket Water Heater |
| 20 | Basin | Countertop Basin |
| 21 | Towel rack | Clothes rack towel rack |
| 22 | Faucet | Tall Faucet |
| Whole house equipment | ||
| 23 | air conditioner | Duct Type Air Conditioner 2P |
| 24 | Bath Heater | Air-heating 3-in-1 integrated bath heater |
| 25 | Electricity Extraction | Plug-in power + manual control switch |
| Smart Home Voice System Options | ||
| 26 | Voice system (optional +3000RMB) | Intelligent home voice system/wireless network/manual control (can control indoor/outdoor light strips, indoor lights, curtains, air-conditioning) |
| Product Accessories | ||
| 27 | Underfloor Heating | Electric underfloor heating (optional +RMB 5700) |
| 28 | Audio-visual equipment | Projector embedded electric screen (optional +6500RMB) |
| 29 | Whole house water supply and drainage insulation and protection system | Whole house water supply and drainage insulation and protection system |
| 30 | Stairs | Entry ladder |
| 31 | Fire Fighting Facilities | Fire sprinkler (optional +10,000RMB) |
