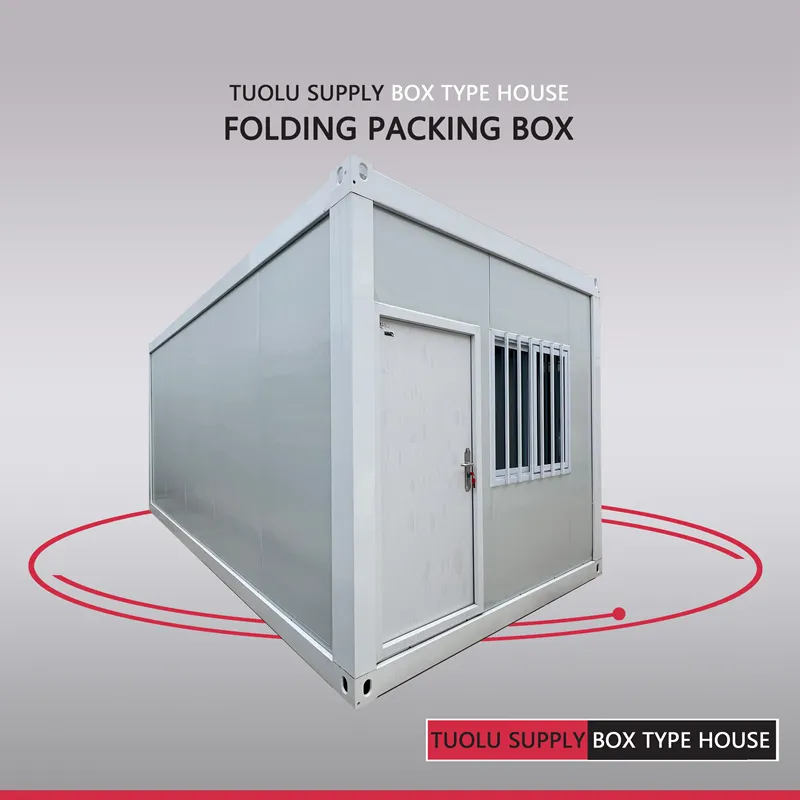

Mobile Folding House
Mobile Folding House
Folding and expanding design, easy to transport and install. Standard size 5800*2438*2530MM, with heat insulation, wind resistance, sound insulation, fire resistance, shock resistance.
Our company specializes in providing top-quality prefab and container homes that combine style, functionality, and eco-friendliness. With our prefab homes, you enjoy the benefits of efficient off-site construction to create beautifully designed modular homes that can be customized to your unique preferences.
Our container homes offer creative solutions. These container homes showcase modern designs that utilize recycled shipping containers as a sustainable and affordable housing alternative. Explore the possibilities of sustainable building with our prefab and container homes.
Unlike many other container home companies, we serve as your expert advisor throughout the entire building process, from initial home design and manufacturing to project completion. Do you have questions about container homes, site requirements, delivery, or anything else? We have the answers you need.
If you are looking for high-quality, cost-effective, fully customizable container homes, look no further than the professional container home builders of Tuolu.
Folding and expansion design
The prefabricated container house stands out with its unique folding and expansion design, making transportation and installation easier than ever before. The standard size is 5800*2438*2530MM. This design not only saves transportation space, but also greatly reduces the time and complexity of on-site construction.
Versatility and wide application scenarios
Prefabricated container houses are suitable for a variety of scenarios, including but not limited to outdoor homes, office spaces, factories and mining areas. Whether it is setting up a temporary office in a remote area, creating a comfortable living space in an outdoor environment, or setting up a living area in a mine, this prefabricated house can provide a safe and comfortable option.
Material and performance advantages
The prefabricated container house has multiple functions such as heat insulation, wind resistance, sound insulation, fire resistance, and earthquake resistance, ensuring optimal performance in various harsh environments. Its sturdy and durable design can not only withstand the challenges of nature, but also provide users with a stable and reliable living or working environment.
Rich and diverse customization options
In order to meet the personalized needs of different users, prefabricated container houses provide a wealth of customization options. The exterior wall panel color, door and window style, interior layout, floor material, roof design and hardware accessories can all be customized according to the specific requirements of customers.
Exterior wall panel color: A variety of color options are available to suit different environments and aesthetic needs.
Door and window style: From simple single-glazed windows to high-performance double-glazed doors, users can choose according to their needs.
Interior layout: The flexible internal partition system allows users to freely plan space, whether for residential or office purposes.
Floor material: A variety of materials including wood, tiles, PVC, etc. are available to suit different usage scenarios and personal preferences.
Roof design: Suitable roof materials and designs can be selected according to climatic conditions to ensure good waterproofing and thermal insulation effects.
Hardware accessories: High-quality hardware ensures convenience and durability.
Folding containers can be structured in different ways according to needs, such as combining living and office space into one, to realise the versatility of space.
In the folded state, the height and volume of the folded box is reduced compared to ordinary container housing, thus saving storage space and location, reducing storage and transport costs, and making on-site operations more convenient and safer.
Through the new folding assembly design, efficient 4-in-1 loading and unloading can be realised, which greatly improves the loading and unloading efficiency. This design is particularly suitable for inland container transport, and the use of folding box house trailers can significantly improve transport efficiency.
The use of folding box is more economical, in line with the world trend of green economy, its insulation and energy-saving performance is also better, so that it becomes more environmentally friendly.
The fixed costs of a folding box are reduced by approximately 60% compared to conventional construction, making it a more attractive option in the face of economic uncertainty and shipping cost expectations. | Folding box standard box configuration details 5800*2438*2530 | ||||
| Component Name | designation | unit | quantity | |
| Main body 2.0 thick | Top frame | Formed crossbeam, galvanised, zinc plated 80g/㎡, 170 wide by 5633mm long | PCS | 2 |
| Formed beams galvanised, 80g/㎡ zinc plated, 170 wide by 2688mm long | PCS | 2 | ||
| 1.2mm 80C profile, galvanised 80g/㎡ | PCS | 7 | ||
| 20*20*1.2mm square tube, galvanised 80g/㎡ | PCS | 2 | ||
| 8mm top corner piece, 4.0mm wall thickness, 210*150*200mm | PCS | 4 | ||
| Bottom frame | Formed crossbeam, galvanised 80g/㎡, 160 wide by 5633mm long | PCS | 2 | |
| Crossbeam, galvanised, 80g/㎡, 160 wide by 2688mm long | PCS | 2 | ||
| Lower crossbeam angle flashing, 5630mm | PCS | 2 | ||
| Lower crossbeam angle flooding, 2685mm | PCS | 2 | ||
| 50*100*1.1mm galvanised square tube cross brace, galvanised 80g/㎡ | PCS | 9 | ||
| 8mm lower corner piece, 4.0mm wall thickness, 210*150*160mm | PCS | 4 | ||
| Columns | Column, galvanised, 80g/㎡, 210 wide, 150 wide 2530mm long | PCS | 4 | |
| Connector 8.0mm, galvanised 80g/㎡ | PCS | 8 | ||
| L-shaped column reinforcement | PCS | 8 | ||
| Single tile capping | 0.4mm colour steel single tile, 360 degrees bite, special waterproof method | Sets | 1 | |
| Glass wool | 50mm glass wool insulation quilt + tin foil + wire mesh | Sets | 1 | |
| Colours | Electrostatic spraying outdoor special paint, baking paint process, 5 years without discolouration | Sets | 1 | |
| Bolts | Hexagonal (galvanised) | PCS | 48 | |
| Angle iron | PCS | 3 | ||
| Chute + Wheel | Sets | 2 | ||
| 50 galvanised channel | M | 37.5 | ||
| drainpipe | drainpipe | 50drainpipe | PCS | 4 |
| suspended ceiling | Ceiling Tiles | 0.3mm, 831 colour steel integrated ceiling panel | PCS | 7 |
| Z-type parts | Z-angle, 5760mm | PCS | 2 | |
| Z-angle, 2780mm | PCS | 2 | ||
| wallboard | wallboard | Type 1150/50 thick wall panelling Inside flat. Outer Orange Peel | M | 37 |
| roofing | shady corner | Colour steel corner, whitewash | PCS | 4 |
| floor | Cement Board | 1175*2822mm | PCS | 5 |
| Plastic flooring | 1.6mm, anti-friction and non-slip plastic | PCS | 1 | |
| Door | steel door | 970*1970 (1150 wall panels) | PCS | 1 |
| Window | moulded window | 1150*1100 sliding window (1150 wall panel) | Sets | 1 |
| Wiring | All power distribution | Industrial sockets 1 set; Leakage protection 1 set; Three-hole and five-hole socket + light switch 1 set; Lighting 1 set. | Sets | 1 |
