Mobile Folding House
Mobile Folding House

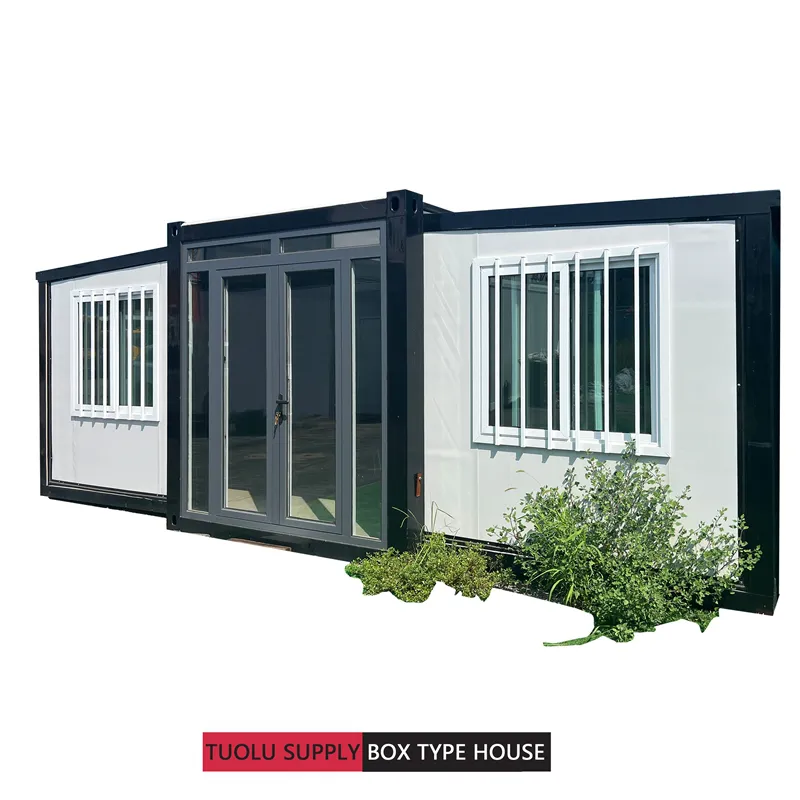

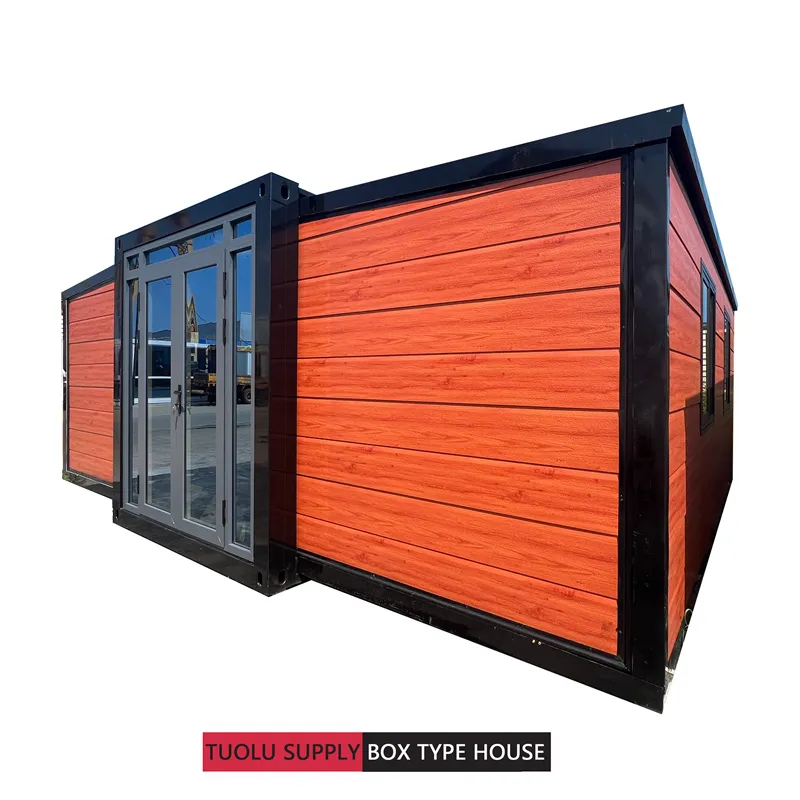

Folding and unfolding design, easy to transport and install. Standard size 5900*2200*2480MM, with heat insulation, wind resistance, noise insulation, fire resistance, seismic.
Folding and unfolding design, easy to transport and install. Standard size 5900*2200*2480MM, with heat insulation, wind resistance, noise insulation, fire resistance, seismic.

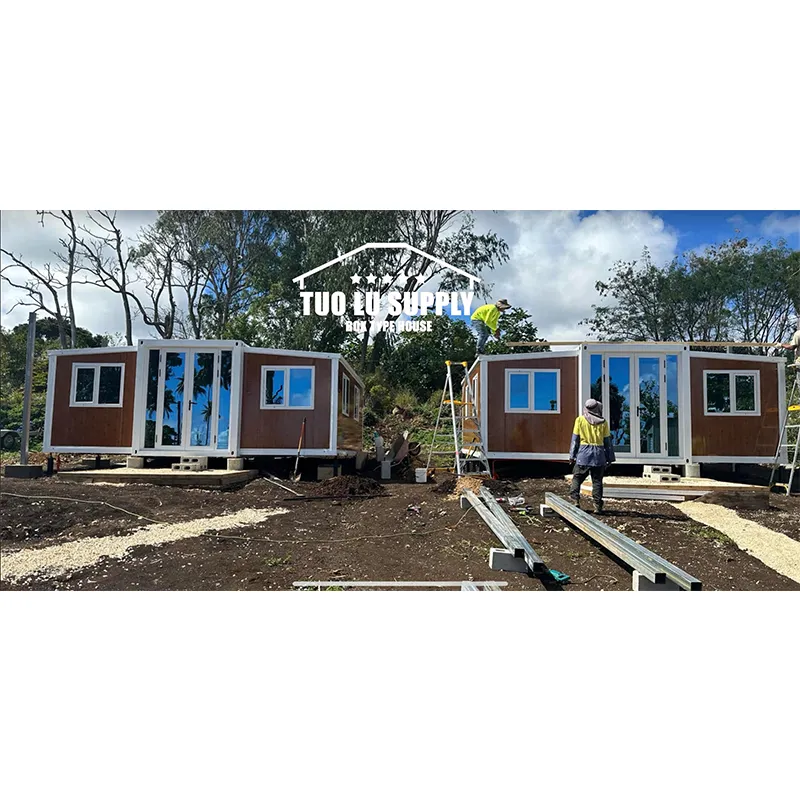

It can be used in many scenarios, such as: outdoor home, office, enterprise, industrial and mining.
External wall panel colours, doors and windows, internal layout, flooring, roofing and hardware can all be customised.
We have prefabricated modular houses, toilets, bathrooms, offices, which are built in the factory and shipped to you to save your time.
Using prefabricated mobile units can save more than 35% of time and shorten the construction time. We offer discounted prices that no one in the market can match. Each portable unit is made of high-quality materials and has a service life of up to years.
High quality galvanised steel anti-corrosion coating, strong anti-aging ability, life span up to 30 years.
The whole is made of steel structure frame, anti-seismic grade 8 or above.
Nodes are well designed, wall panels can resist grade 8 gale.
Adopting high quality sealing rubber strips, windproof and rainproof.
Adopting high quality rock wool sandwich panel as wall panel, with better heat preservation performance.

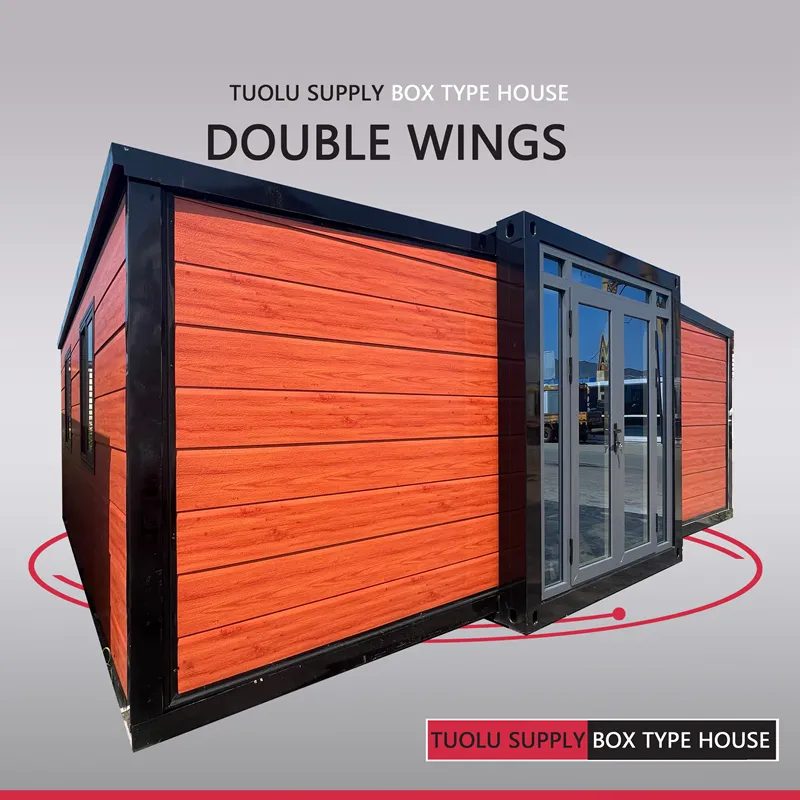

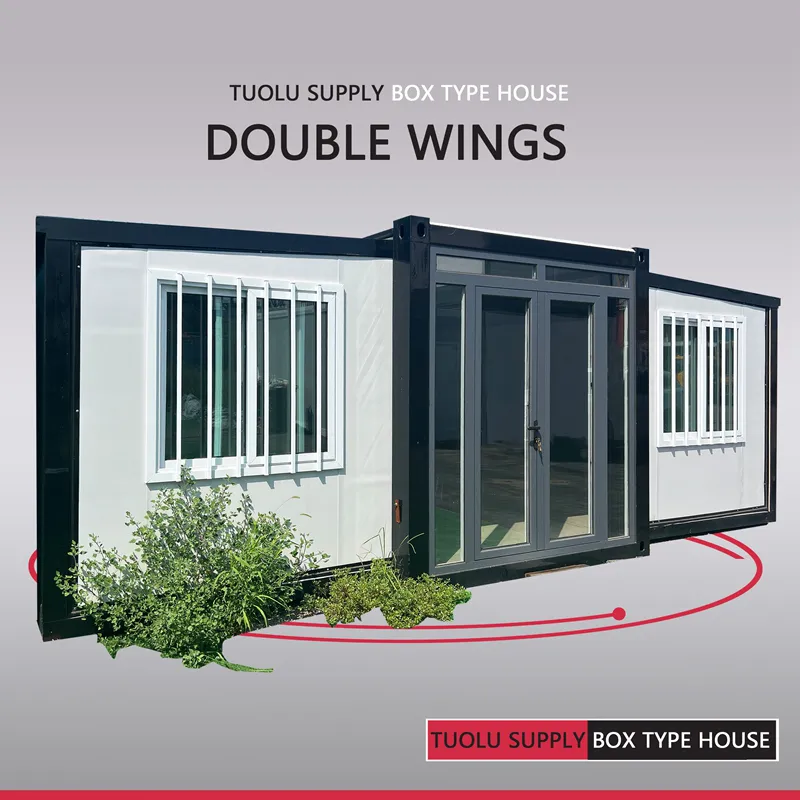

Easy to install, it only takes 10 minutes to create a perfect view. Accessories high, medium and low grade available. | Double Wing Expansion Configuration Parameters | ||||
| Cabinet | Outer size (L*W*h) | 5900*2200*2480mm | ||
| Unfolded size (L*W*H) | 5900mm*6300mm*2480mm | |||
| Standard | Insulation Performance | 入= 0.048W/m-K | Wind Resistance | 0.60kN/m² |
| Acoustic Performance | Sound insulation ≥30dB | Fire Resistance | Grade A | |
| Waterproof Performance | Precipitation 16mm/min without leakage. | Seismic Performance | Grade 8 | |
| Ground Live Load | 2.0kN/m² | Roof Live Load | 0.9kN/W² | |
| Structures | Main Frame | Ground main beam: specification 80mm*100mm square steel, galvanised beam 2mm thick; Ground secondary beam: specification 80*40*1.5mm thick galvanised square tube; Column: specification 210*150mm, galvanised 2mm thick; Roof main beam: 80mm*100mm square steel, galvanised 2mm thick. Roof purlin 40*40*1.2mm thick, 20*40*1.2 square tube*2 pcs. | ||
| Side Frames | Concave tube 1.2mm special tube | |||
| Surface Treatment | Electrostatic spraying plastic powder baking paint ≥80 Hm | |||

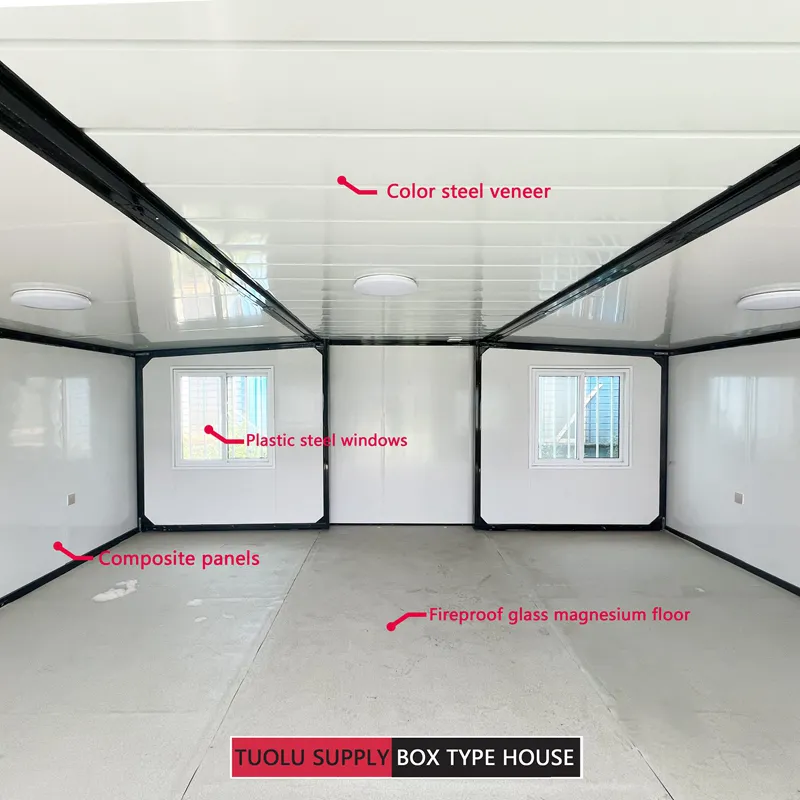

| Wall panel | Flame Retardant Styrene Board | Colour steel EPS composite panel thickness 75mm, width 950mm, colour steel plate thickness 0.3mm, white-grey, inside and outside pure flat without embossed heat insulation board, capacity 10kg/m³ flame retardant. | ||
| Roofing | Roof panels | 50 thick EPS composite panel, steel plate thickness 0.3mm, top with corrugated board, secondary waterproof, thickness 0.3mm. | ||
| Insulation | EPS thickness 50mm, capacity 10kg/m³, flame retardant | |||
| Ceiling | 200 type pressure type fastening plate | |||
| Floor | Structural Board | The main floor is made of magnesium, thickness 18mm; the two sides of the floor are made of 18mm wood veneer. | ||
| Plastic flooring | pvc floor leather, thickness 2.0mm | |||
| Door | Entry Doors | Broken bridge aluminium folio/Kentucky aluminium alloy folio door/aluminium-magnesium alloy flush/aluminium-magnesium alloy sliding, size ≥ W1900mm × H2230mm.Toughened glass. (Alternative one) | ||
| Interior doors | W780xH2050 steel door | |||
| Window | External window | Broken bridge aluminium casement window/plastic steel casement window/aluminium-magnesium alloy track sliding window, size: W930mm×h930mm (choose one, quantity can be customized) | ||
| Electronic | Lamps | LED round ceiling light 15W/set. Bathroom 12W | ||
| Socket | Optional European standard, American standard, Austrian standard, national standard | |||
| Switches | Double open, single open | |||
| Distribution Boxes | Distribution box x 1 pc. With leakage protector x 1. Air switch x 4 | |||
| CEE Industrial Plugs | 220V, 50Hz, 3P64A x 1 pc. | |||
| Wiring | Entry line: 3*6 square, air-conditioner socket: 3*4 square, common socket: 3*2.5 square, lighting: 2*1.5 square. | |||
| Waterproofing | D-shaped adhesive tape for each movable joint; butyl waterproof tape | |||
| Integrated bathroom | Toilet seat, shower cubicle, wash hand basin, ventilated window, supply and drainage fittings (alternative: empty box not included) | |||
| Separate wet and dry bathrooms | Sliding door | |||
