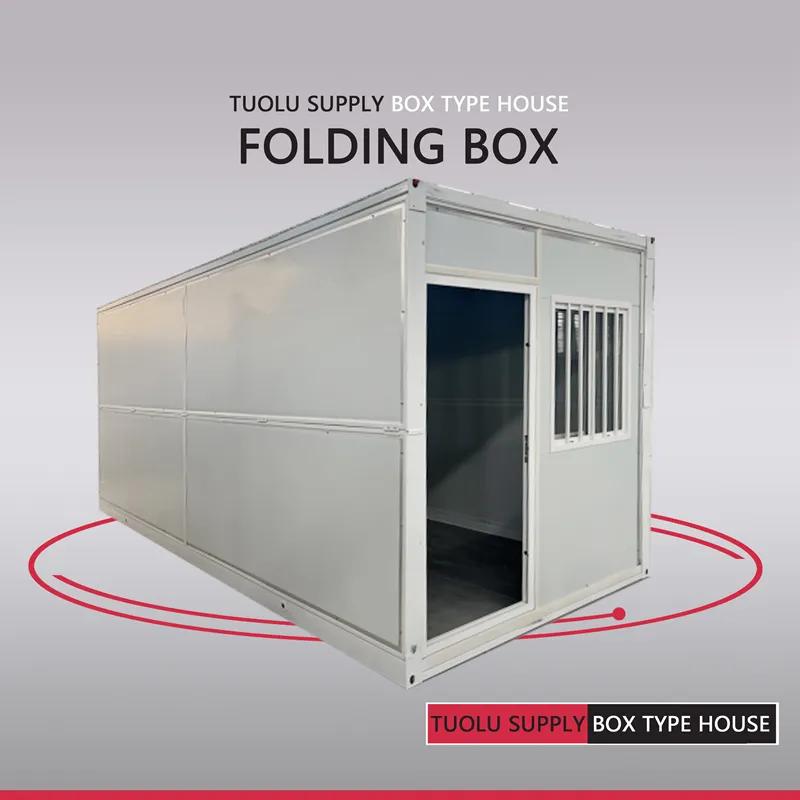

Mobile Folding House
Mobile Folding House
Folding and unfolding design, easy to transport and install. Standard size 5800*2480*2560MM, with heat insulation, wind resistance, sound insulation, fire resistance, shock resistance.
Standardized size: The basic unit is 5800×2480×2560mm (about 19×8×8.4 feet), which meets the international container transportation standards and is convenient for sea transportation, land transportation and rapid lifting.
Folding and unfolding design: The foldable frame structure is adopted, and the volume is reduced by 30% during transportation. The on-site installation can be unfolded and fixed in just a few hours, which greatly reduces the logistics and construction costs.
Flexible combination: Supports horizontal/vertical splicing of multiple boxes to create duplex and townhouse buildings to meet different area and functional requirements.
Outdoor living space
Emergency housing
Mobile office/exhibition hall
Factory workstation
Public service facilities
Cost saving: Compared with traditional buildings, it saves 30%-50% of construction costs and shortens the construction period by 60%.
Mobile properties: No foundation is required, and the whole can be moved and reused.
Folding containers can be structured in different ways according to needs, such as combining living and office space into one, to realise the versatility of space.
In the folded state, the height and volume of the folded box is reduced compared to ordinary container housing, thus saving storage space and location, reducing storage and transport costs, and making on-site operations more convenient and safer.

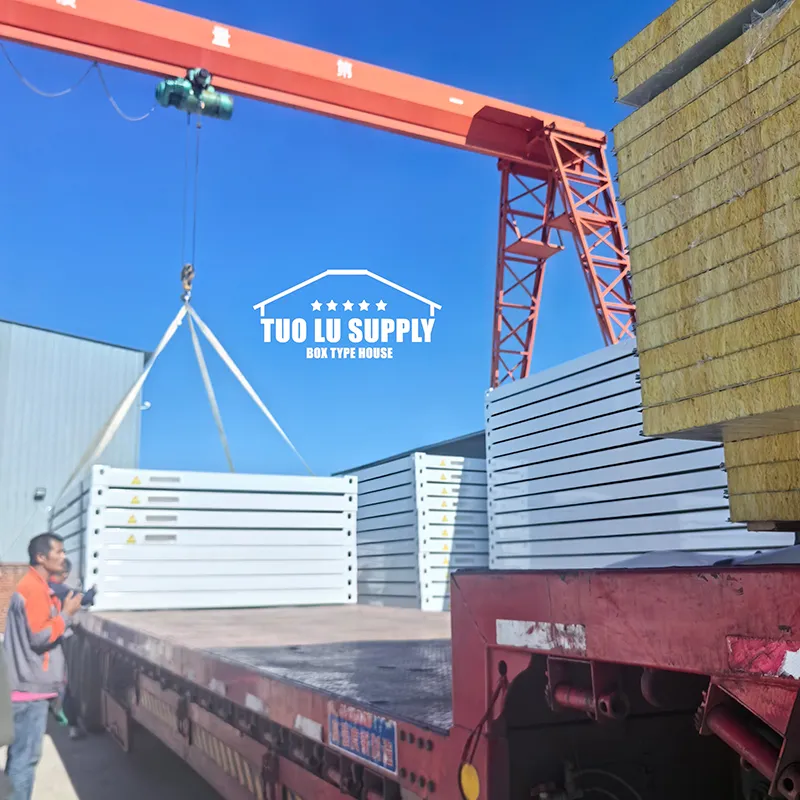

Through the new folding assembly design, efficient 4-in-1 loading and unloading can be realised, which greatly improves the loading and unloading efficiency. This design is particularly suitable for inland container transport, and the use of folding box house trailers can significantly improve transport efficiency.
The use of folding box is more economical, in line with the world trend of green economy, its insulation and energy-saving performance is also better, so that it becomes more environmentally friendly.
The fixed costs of a folding box are reduced by approximately 60% compared to conventional construction, making it a more attractive option in the face of economic uncertainty and shipping cost expectations. | Folding Packing Box | ||
| Basic characteristic | External Dimensions(mm) | 5800L*2480W*2560H |
| Internal Dimension(mm) | 5640L*2320W*2400H | |
| Folded state(mm) | 5800*2480*360 | |
| Total mass (kg) | 1000 | |
| Framework structure | Top main beam | Q235B Rectangular square tube 60×80×1.3mm |
| Bottom main beam | Q235B Rectangular square tube 60×140×1.5mm | |
| Front and rear main beams | Q235B Rectangular square tube 60×80×1.3mm | |
| Side wall framing | Q235B Rectangular square tube 40×60×1.3mm | |
| Bottom load bearing | Q235B Rectangular square tube 40×40×1.3mm | |
| Top load bearing | Q235B Rectangular square tube 40×40×1.3mm | |
| Hanging head | Q235B 155*110*（4mm) | |
| Folding hinge | Galvanised hinge 13mm | |
| Top of a box | Overall frame protective coating | Electrostatic spraying/high-gloss white |
| Exterior ceiling panels | Galvanised sheet 0.5mm | |
| Internal ceiling | Colour steel veneer V930*0.25㎜ | |
| Wallboard | Insulating glass wool | Glass wool roll 50mm (capacity 16kg) |
| Sidewalls | 50mm composite board 0.23mm + basalt wool (capacity 50kg) + 0.23mm | |
| Front and rear wall panelling | 65mm composite board 0.23mm + basalt wool (capacity 50kg) + 0.23mm | |
| Floor | Fire-rated glass-magnesium flooring 15mm adhesive | |
| Electrical system | Electrical wiring, installed in strict accordance with the moisture-proof norms, all electrical products need to comply with CE certification. According to the circuit engineering specification to connect the circuit, indoor: incoming 4 ² national standard soft copper wire, 20A circuit breaker 1, socket incoming 2.5 ², 5-hole single socket 1, 10-hole socket 1, air conditioning socket 1, light 1. | |
| Common security door | High quality security door (warm white) size:930mm*1970mm | |
| Window | 930*930 plastic steel anti-theft one-piece window, glass thickness 4mm (warm white) | |
| Quality Assurance (QA) | The whole box as a whole meets Class A fire prevention standards. | |
